Engineed for Modern Vertical Mobility

B Core Series

RELIABLE, VERSATILE.
BUILT FOR EVERYDAY ELEVATION.

B-CORE SERIES
ONE CORE.
FIVE PURPOSES.

The B-CORE series is a family Of vertical transportation solutions, engineered for the unique demands Of different environments. From compact dumbwaiters to heavy-duty goods and automobile lifts, every model is built on the same foundation Bluebell's commitment to design, engineering, safety and experience.

RESTAURANTS RESIDENCES HOTEL TEXTILE SHOOWROOM LIBRARY

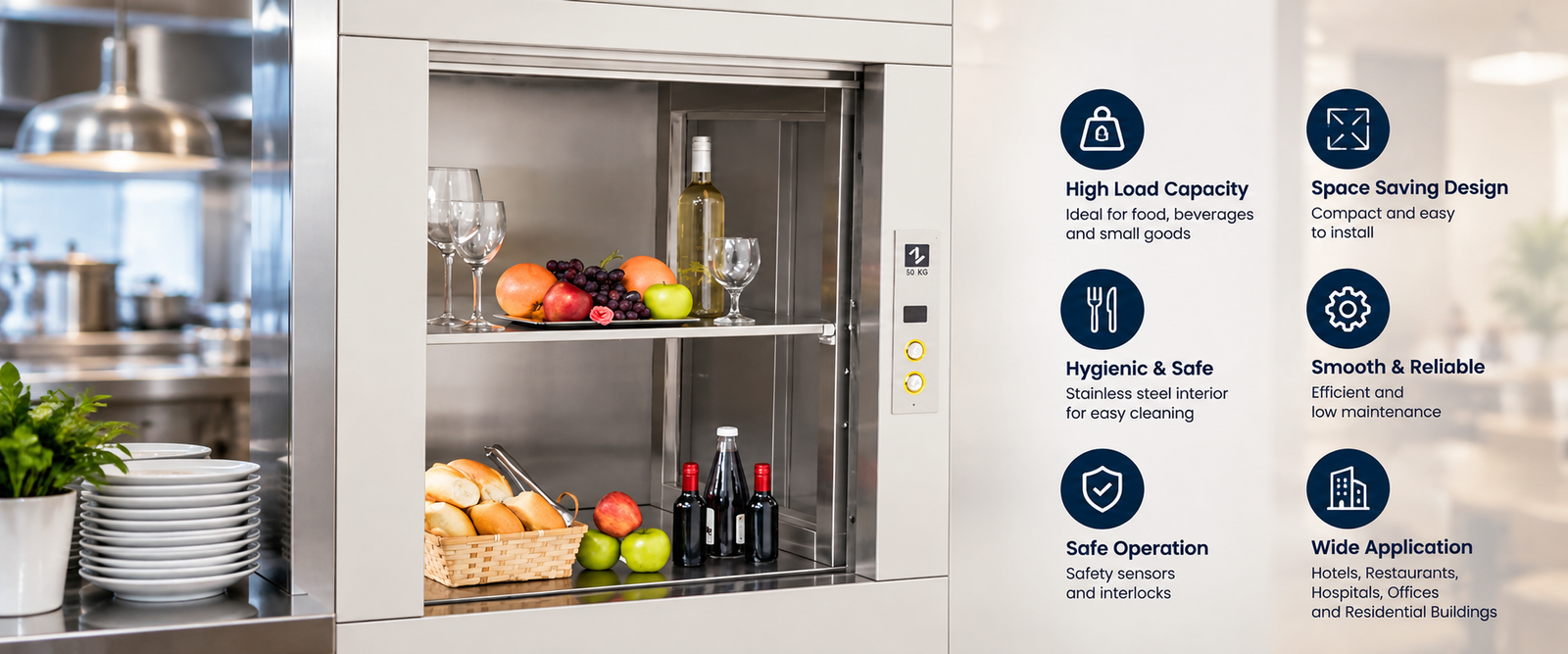

B-CORE 1000

DUMBWAITER LIFTS

Small footprint. Big utlity. Compact. Proficient and Reliable.

B-CORE 1000 is the ideal solution for seamless movement of cornpact materials from floor to noor.

INSTITUTIONS APARTMENTS MALLS & COMMERCIAL SPACES

B-CORE 2000

PASSENGER LIFTS

Everyday movement. Engineered Better

B-CORE 2000 designed for smooth. reliable and efficient vertical mobility in comrnercial and residential enviornment.

HOSPITAL CLINIC MEDICAL INSTITUTIONS

B-CORE 3000

HOSPITAL LIFTS

When every second & every detail matters

B-CORE 3000 is built for the unique demands ot healthcare environments. with a on safety, hygiene, accessibility and reliability.

INDUSTRIES WAREHOUSE SHOWROOMS APARTMENTS

B-CORE 4000

GOODS / SERVICE LIFTS

Built to move what matters. Rugged, Reliable and Emcient.

B-CORE 4000 is dedicated the demanding requirements of goods and service applications.

CAR SHOWROOMS CAR PARKING RESIDENCES GARAGE MULTILEVEL CAR PARKING

B-CORE 5000

AUTOMOBILE LIFTS

Move the machine Engineered for precision, strength and safety.

B-CORE 5000 is the ideal solution for vertical transportation of vehicles.

↕ ↕

PASSENGER ELEVATORS

LOAD		CAR INSIDE		ELEVATOR WELL		ENT	MACHINE ROOM			TYPE OF DOOR
PERSONS	KG	WIDTH A	DEPTH B	WIDTH C	DEPTH D	WIDTH E	WIDTH K	DEPTH K	HEIGHT L	TYPE OF DOOR
4	272	1100	700	1600	1100	700	3100	3600	2500	MANUAL
5	340	1100	850	1600	1300	700	3100	3600	2500
6	408	1100	1000	1600	1400	800	3100	3600	2500
8	544	1300	1100	1800	1550	800	3300	3600	2500
4	272	1100	700	1900	1400	700	3490	3600	2500	AUTO
5	340	1100	850	1900	1500	700	3100	3600	2500
6	408	1100	1000	1900	1700	800	3400	4100	2500
8	544	1300	1100	1900	1800	800	3400	4400	2500
10	680	1350	1300	1900	2000	800	3400	4600	2500
13	884	2000	1100	2500	1900	900	4000	4400	2500
16	1088	1800	1300	2000	2100	1000	4000	4600	2500
20	1360	2000	1550	1600	2400	1000	4000	4900	2500
24	1632	2150	1650	2650	2500	1100	4150	4950	2500

⇅

FREIGHT ELEVATORS

LOAD	CAR INSIDE		ELEVATOR WELL		ENTRANCE	MACHINE ROOM
KG	WIDTH A	DEPTH B	WIDTH C	DEPTH D	WIDTH E	WIDTH K	DEPTH L
500	1500	1500	2000	2000	900	2500	4500
1000	1400	1800	2300	2100	1400	2500	4600
1500	1700	2000	2600	2300	1700	2600	4800
2000	1700	2500	2600	2800	1700	2600	5300
3000	2000	3000	2900	3300	2000	2900	5800
4000	2500	3000	3400	3300	1500	3400	5800
5000	2500	3600	3400	3900	2500	3400	6400

⇅

DUMB WAITERS

LOAD	CAR SPEED	CAR INSIDE			ELEVATOR WELL		ENTRANCE	MACHINE ROOM
KG	MPS	WIDTH A	DEPTH B	HEIGHT H	WIDTH C	DEPTH D	C/O E	WIDTH K	DEPTH L
100	0.50	700	700	800	1200	1000	700	1400	1500
150	0.50	800	800	900	1300	1200	800	1500	1500
200	0.25	900	900	1000	1400	1200	900	1500	1800
250	0.70	1000	1000	1200	1500	1300	1000	1800	2000

⚕

HOSPITAL ELEVATORS

LOAD		CAR INSIDE		ELEVATOR WELL		ENTRANCE	MACHINE ROOM
PERSONS	KG	WIDTH A	DEPTH B	WIDTH C	DEPTH D	C/O E	WIDTH K	DEPTH L
15	1088	950	2400	1700	3000	800	3700	5500
20	1360	1300	2400	2200	3000	1200	4200	5500
26	1763	1600	2400	2350	3000	1200	4350	5500

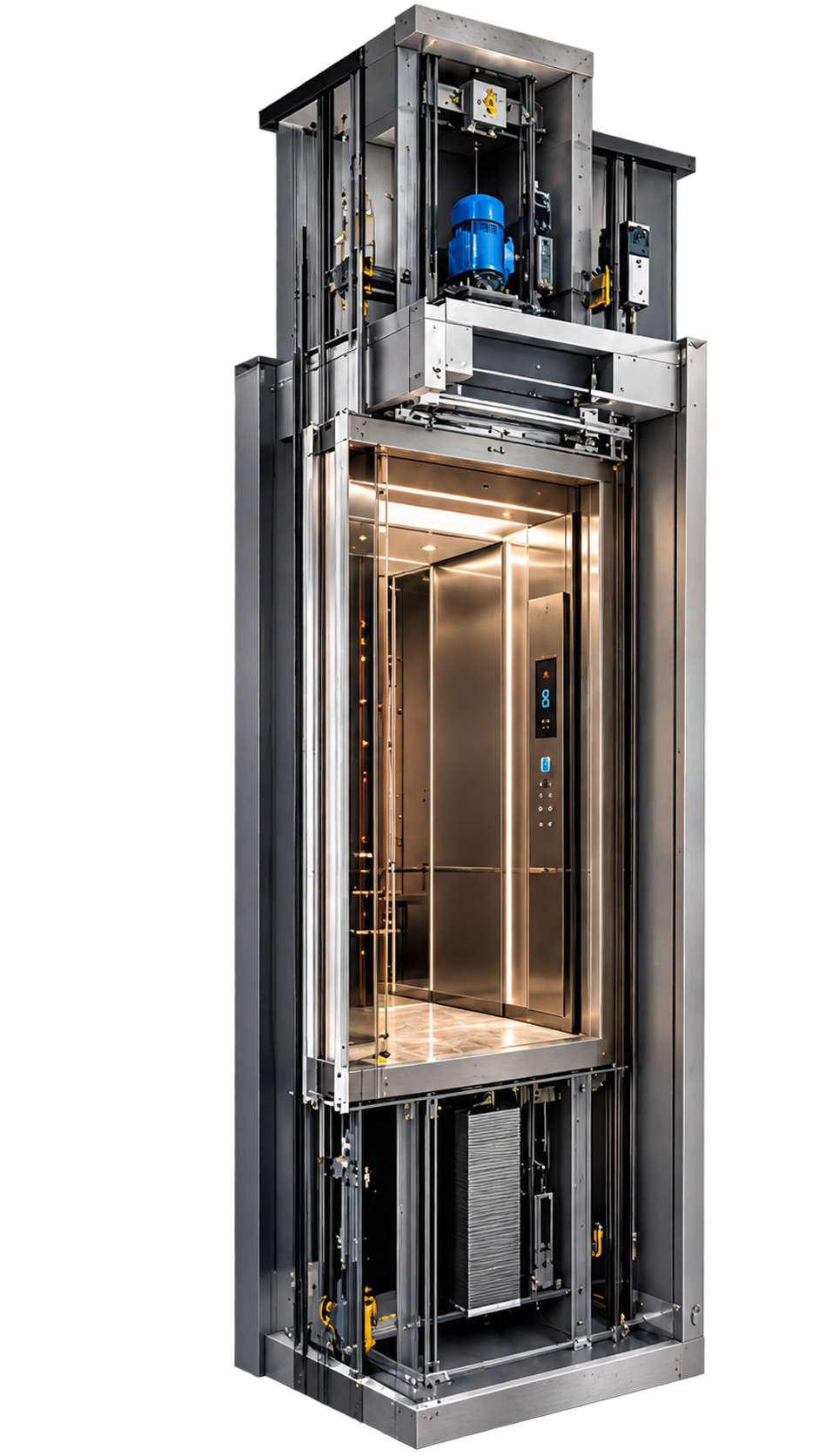

FEATURES

B - CORE | B - EXTREME

SAFETY

PROTECTION SYSTEMS

MULTI-BEAM LIGHT CURTAIN

Continuously monitors the door opening. If an obstruction is detected the doors respond to help prevent contact.

OVERSPEED GOVERNOR (OSG)

Monitors elevator speed and activates the safety mechanism if an abnormal overspeed condition is detected.

OVERLOAD DETECTION

Detects excessive cabin load and prevents operation until the load is within permissible limits.

DOOR LOCK MONITORING

Ensures the lift does not operate unless door safety conditions are satisfied.

EMERGENCY LIGHTING

Provides illumination inside the cabin in the event of a power interruption.

CONTROL

PRECISION & PERFORMANCE

PRECISION MAGNETIC SENSING

Accurate positioning. Controlled stopping. Precise levelling.

ARD - AUTOMATIC RESCUE DEVICE

Automatic Rescue Device brings passengers to a designated floor during power failure.

VVF VARIABLE FREQUENCY DRIVE

Controlled acceleration and deceleration for a smoother ride.

MICROPROCESSOR CONTROL / IOT

Smart elevator control with safety monitoring and digital diagnostics.

AUTO LEVELLING

Maintains accurate alignment with the landing floor.

EXPERIENCE

COMFORT & CONNECTIVITY

EMERGENCY INTERCOM

Direct communication for assistance during an emergency.

EMERGENCY ALARM

Allows passengers to signal for help.

SYSTEM FAILURE RECOVERY

Maintains emergency operation during system interruption.

CABIN FAN

Provides ventilation within the cabin.

LED CABIN LIGHTING

Provides efficient and refined cabin illumination.

SOFT START / SOFT STOP

Creates a smoother, more comfortable ride.

WHERE THE ELEVATOR
MEETS THE ARCHITECTURE.

Indoor or outdoor. Modular or welded.
Bluebell gives the elevator its place in the building.

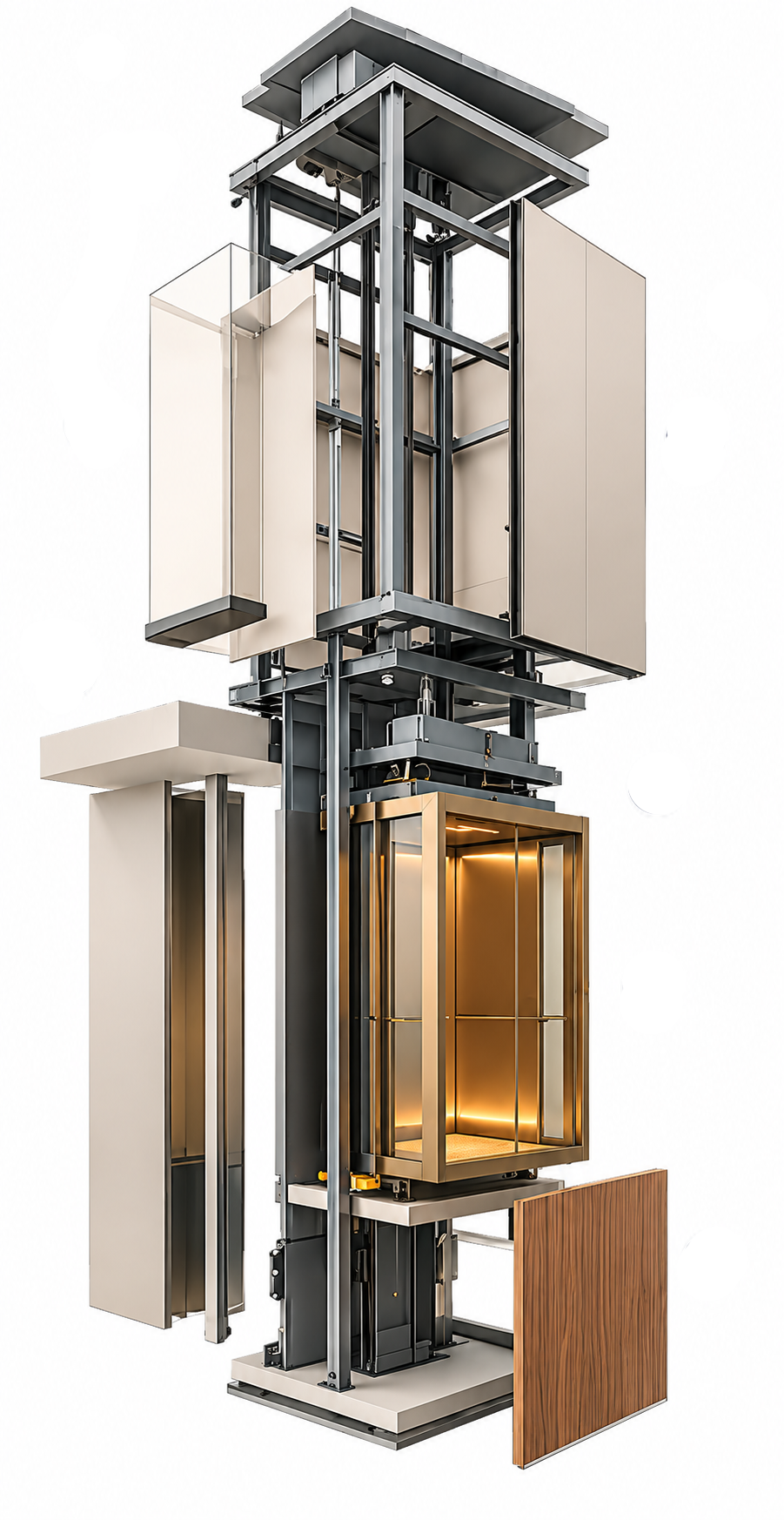

INDOOR

MODULAR SHAFT

DESIGNED FOR B-EXTREME 300

A refined structural solution for interior applications. The bluebell Modular Shaft is designed around the B-EXTREME 300, creating a coordinated elevator and shaft system that can be integrated into the interior architecture.

Modular structural frame

Shaft enclosure

Landing interface

Elevator system

Cabin

Architectural finish

1 2 3 4 5 6

MODULAR

Design based
construction

INTEGRATED

Designed around
B-EXTREME 300

ARCHITECTURAL

Designed to become
part of the space

ONE ARCHITECTURE. TWO SOLUTIONS.

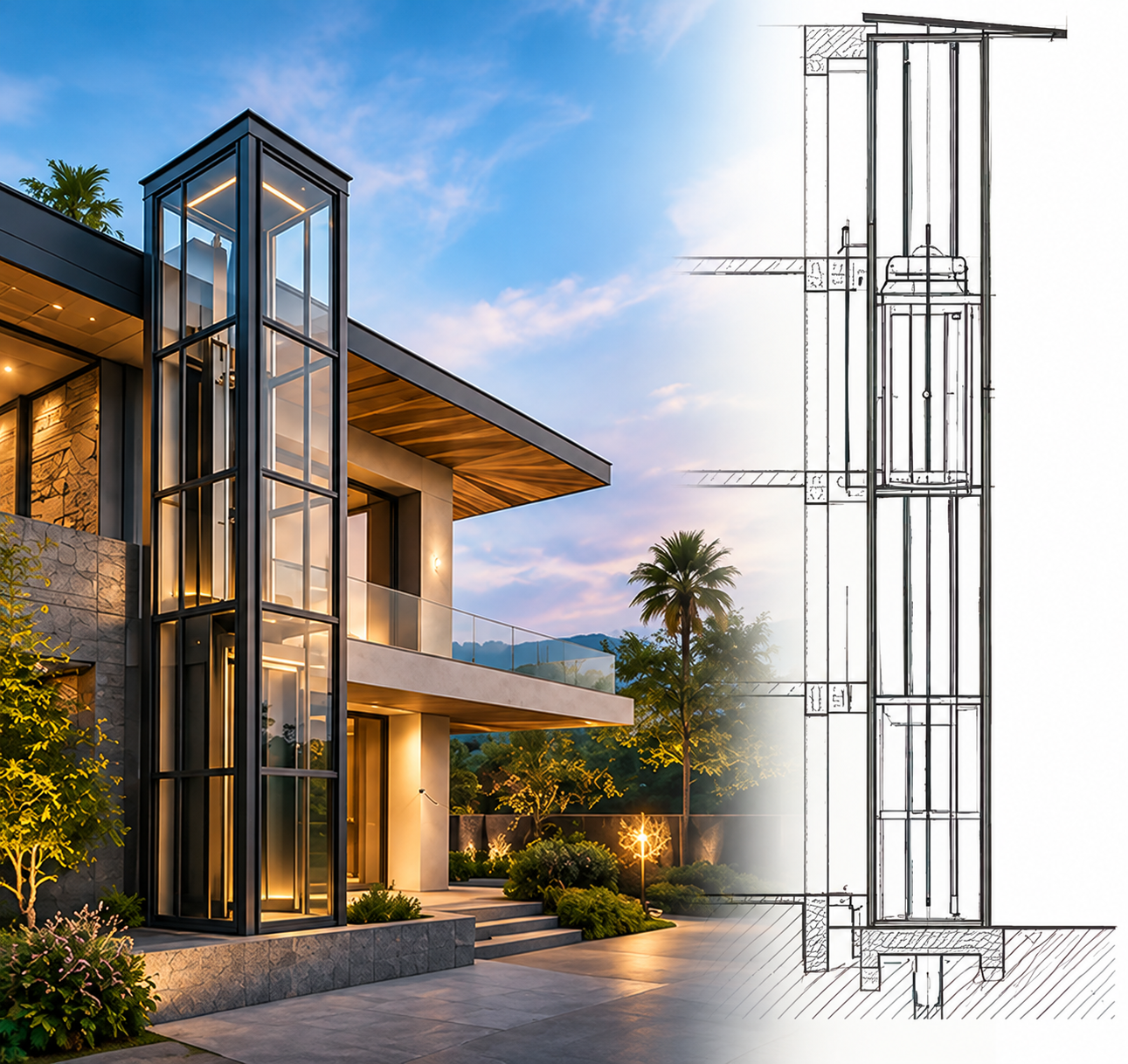

OUTDOOR

WELDED SHAFT

FOR B-EXTREME 300 B-CORE

Built for exterior integration. The Bluebell Welded Shaft provides a robust external shaft solution for both the B-EXTREME 300 and B-CORE platforms, allowing an elevator to be introduced where a conventional internal shaft may not be practical.

WELDED

Engineered structural
construction

VERSATILE

Compatible with
B-EXTREME 300 and B-CORE

EXTERIOR READY

Designed for outdoor
architectural applications
